Pharmaceutical Aseptic Production
and Packaging Equipment

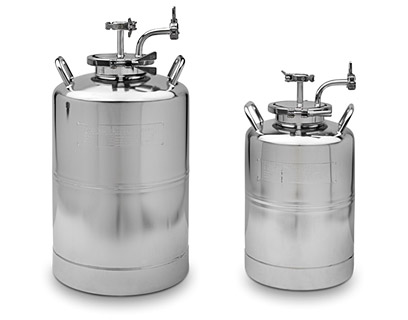

Aseptic Pharma Containers and
Aseptic Pharma Bottles of Stainless Steel
Aseptic Pharma Vessels and Aseptic Pharma Bottles support sterile production and packaging of active ingredients and drug products. Pharmaceutical manufacturers, biotech companies, and healthcare contract manufacturers rely on a GMP-compliant sterile design that helps protect people, product, and the environment.
This series is available in 15 standard sizes, ranging from 0.05 to 500 liters. The modular platform can be configured for your aseptic application with a range of process technologies and accessories.
Used in the production of:
- APIs
- Vaccines
- Insulin
- Antibiotics
- Blood Plasm Products
- In-vitro Diagnostics
- Immunotherapeutics
- Nucleic Acid Products
- Molecular Diagnostics
Aseptic Production and Packaging

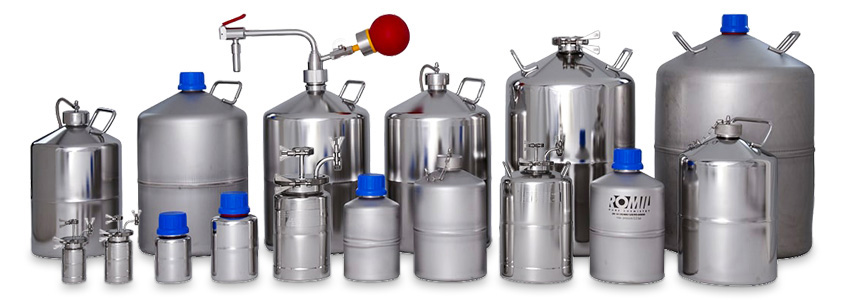

Laboratories employ small stainless steel vessels with a capacity starting from 0.1 liters to investigate lead structures and facilitate the development of medicinal products. For process development, pilot plants utilize small-scale bioreactors, typically around 10 liters. In pharmaceutical production, larger batch containers, approximately 200 liters, are implemented for aseptic manufacturing processes. Additionally, for the purposes of sterile packaging, storage, and transportation, stainless steel pharmaceutical cans and bottles ranging from 0.03 to 30 liters are utilized.
- Sterile Production
- Sterile Formulation
- Sterile Mixing
- Sterile Filling and Packaging
- Sterile Storage
- Sterile Transport
The standardized sterile design of stainless steel pressure vessels and cans eliminate cross-contamination. Our design minimizes microbial adhesion, avoids dead spots and allows easy cleaning. All vessels and bottles are made of material grade 316L stainless steel, with seamless welds, and electropolished finish. Vessels up to 50 liters are deep drawn with only one weld seam. Tri-clamp nozzles and connections allow easy assembly. FDA compliant gaskets are chemical and temperature resistant.
- Pressure and vacuum resistant (CE/PED)
- Sterilizable and autoclavable (SIP)
- Easy to clean (CIP)
- No dead space
- Easy to mount
- Optimized residual discharge
- FDA-compliant gaskets
- GMP-suitable documentation
Modular System

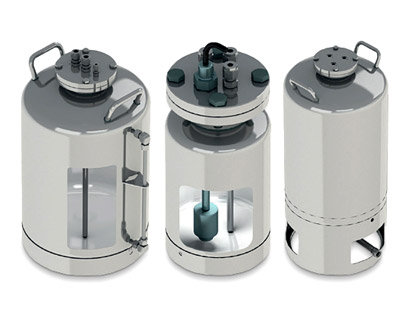

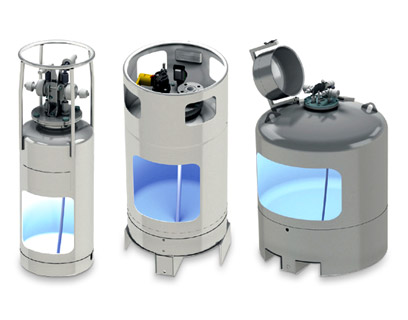

Pharmaceutical Aseptic containers are available in the modular system in 3 types and 15 sizes:
- Type series C (standard) is the classical formulation vessel with dip tube for discharging and a pressure connection
- Type series CM (with magnetic stirrer) is used as stirring and mixing vessel.
- Type series CDM (with double jacket) as cooling or melting vessel.
- 15 standard sizes from 0,05-500 liter
Series C
Series CM
Series CDM
Customization
Each type series can be customized for the individual aseptic application with process technology and accessories. For the mobile use in sterile areas trolleys are available with magnetic drive, thermostat and scales.

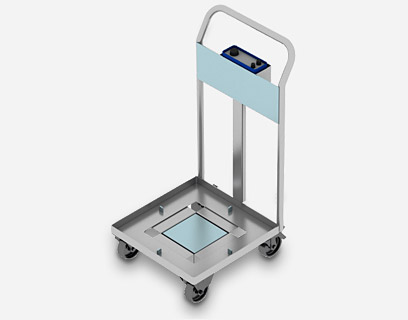

Trolley with magnetic drive
Options available
Black Forest offers a variety of stainless steel pharmaceutical hygienic bottles, containers and pressure vessels for the storage, process, biological transport and transfer of precious products and hazardous materials. Many Laboratory Bottle designs are UN/DOT approved. Large sanitary Tri-clover openings allow for easy access to products, and ease of cleaning – liquids, intermediates & solids. Custom and standard applications are offered for these returnable, reusable vessels.
Additional Products
Black Forest also offers these other product lines: Aseptic Totes, AgChem Containers, Tanks and Drums, E-Intermediate Bulk Containers, Cannabis Processing Equipment, UN/DOT Approved Containers, General Purpose/ Pressure Vessels, Teflon Lined Process Equipment, Wine Equipment, Wine and Beer Equipment, Wine Bags, Cellar and Sankey Kegs, Process and Fermentation Tanks, 350 gallon T-304 stainless steel IBC containers.
